Z80


Introduction date:   1976
Category:   8-bit microprocessor
Frequency:


 		   Z80 2.5MHz
Z80A 4MHz
Z80B 6MHz
Z80H 8MHz
Technology:   N-channel Silicon Gate
Number of transistors:
Addressable memory:   64Kbyte
Number of instructions:   158 with 17 registers
History:





Second source:   Hitachi, Mostek, NEC, Sharp, SGS-Ates(ST), Toshiba, some easter clones was also made of the Z80 series.



Zilog

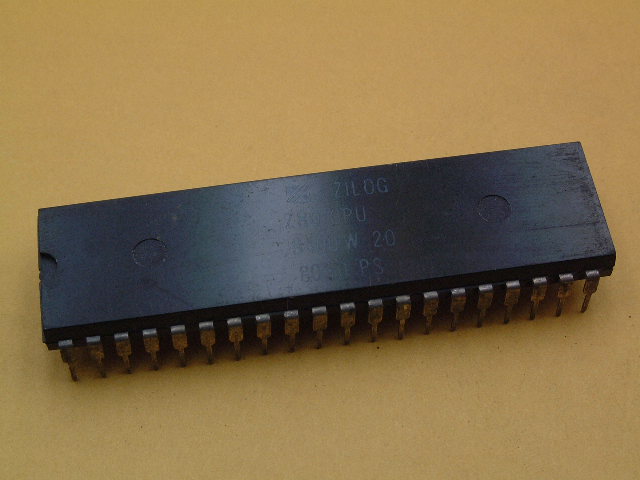

Z80 Z-80A Z-80A Z80B

Dallas
7626		 7614 8017 8408

Z80B

8425

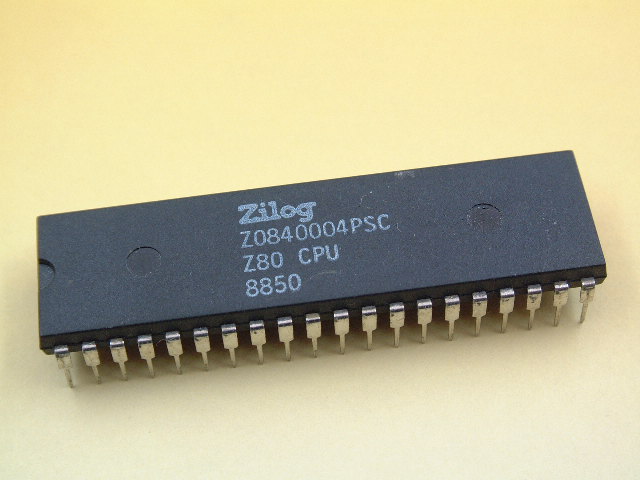

Z-80 Z80 Z0840004PSC

7914 8030 8850



MME

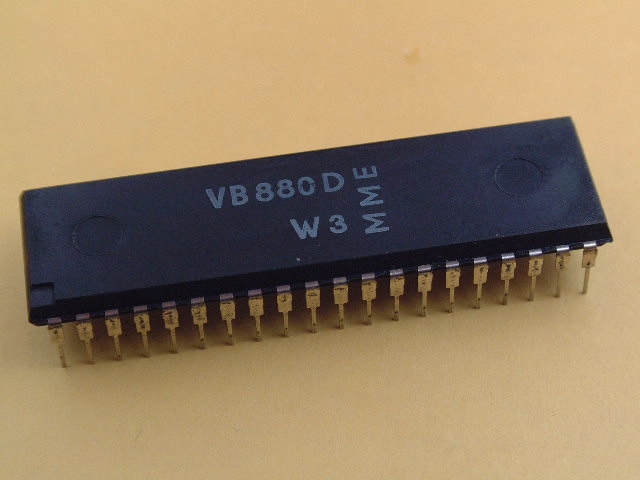

VB880D





NEC

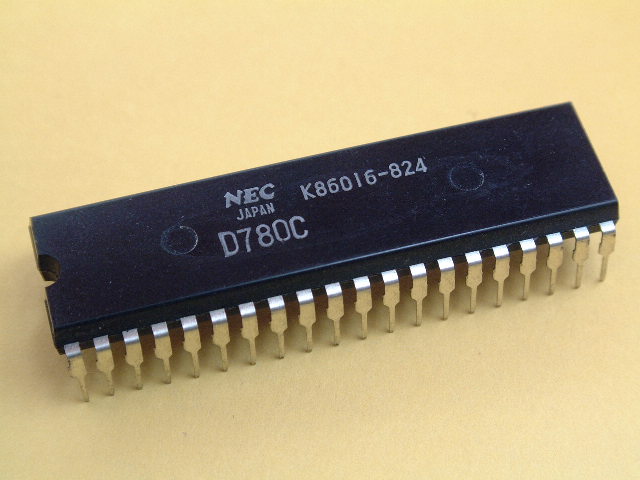

D780C





SHARP

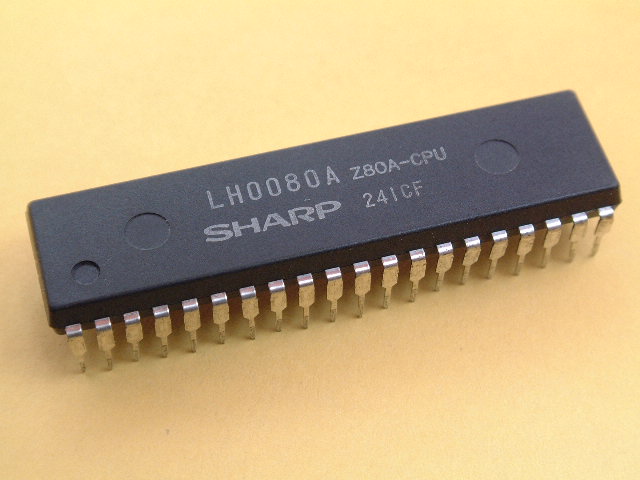

LH0080A
Z80-CPU

8241



ST

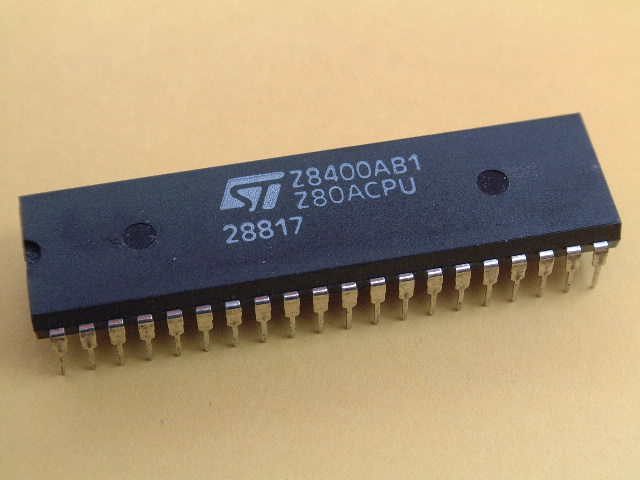

Z80CPUF1

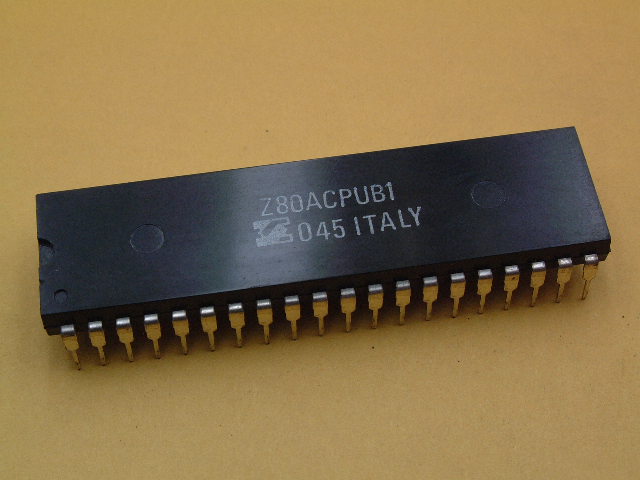

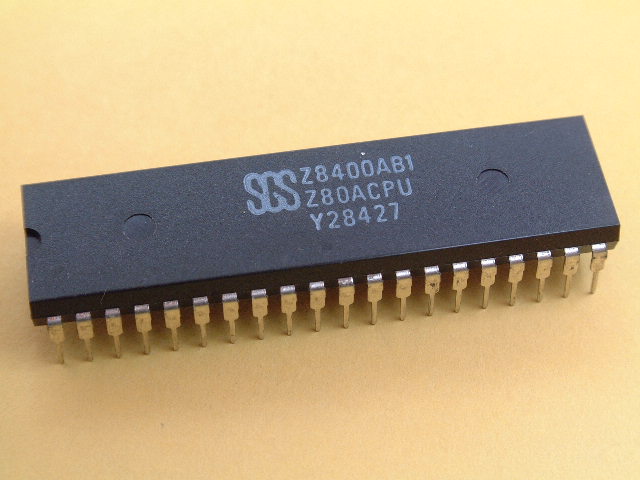

Z80ACPUB1 Z8400AB1 Z8400AB1






Z80 Peripherial chips
Other chips in the Z80 series required to build a complete computer systems.


Z80 PIO Parallell I/O Interface Controller
Z80 CTC Counter Timer Circuit
Z80 DMA Direct Memory Access
Z80 SIO/0 /1 /2 /9 Serial Input/Output
Z80 DART Dual Asynchronous Receiver / Transmitter
Z80 SART Single Ansynchronous Receiver / Transmitter
Z6104 4096 x 1 bit Static Ram
Z6114 1024 x 4 bit Static Ram
Z6142 1024 x 4 bit Static Ram
