Pentium
Pentium MMX & Pentium Overdrive

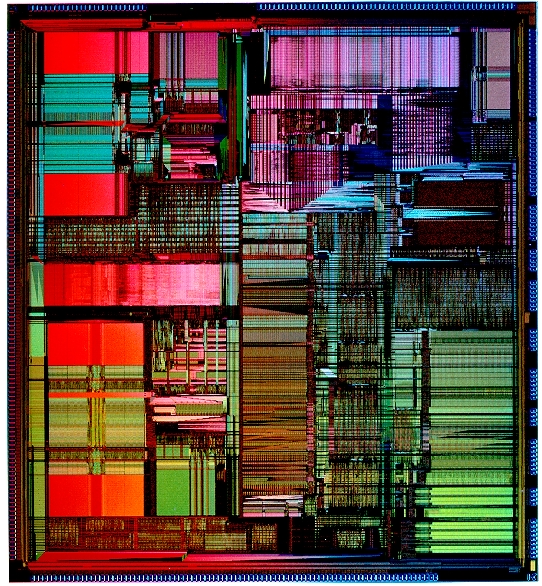

(Pentium die core)
| Introduction date: | March 22, 1993 | |
| Category: | 32-bit microprocessor | |
| Frequency: | 60MHz - 266MHz | |
| Technology: | BiCMOS | |
|
Number of transistors: |
60-66MHz 3.1Million (0.8Microns) 75-120MHz 3.2Million (0.6Microns) 133-200MHz 3.3Million (0.35Microns) MMX 4.5Million (0.35Microns) |
|
| Addressable memory: | 4Gbyte | |
| Number of instructions: | ||
| History: |
|
|
| Second source: |
| Intel Pentium | |||||

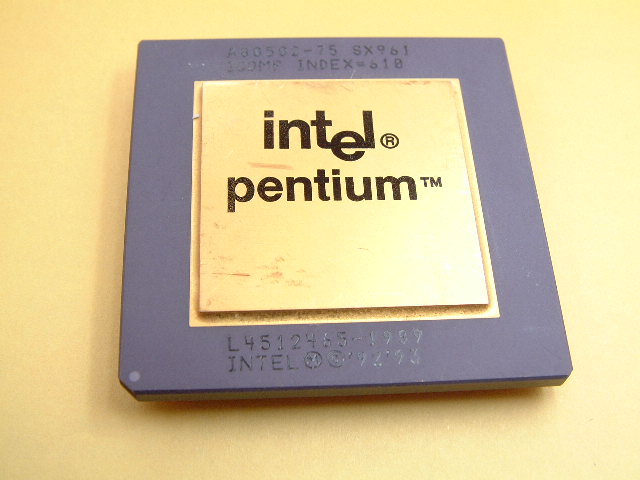

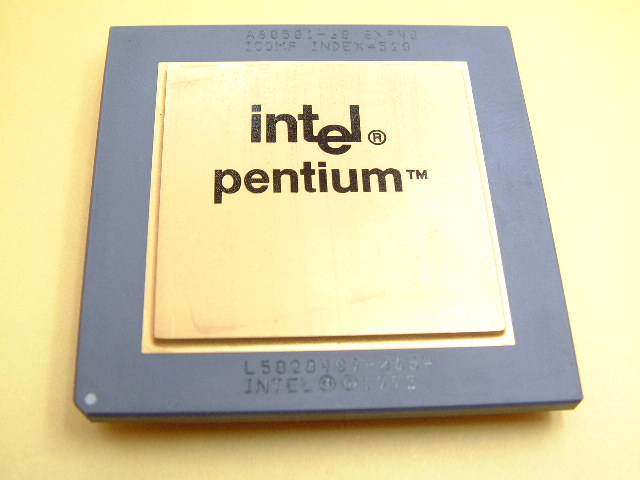

| A80501-60 | A80501-60 | A80501-66 | A80501-66 | A80502-75 | A80502-90 |
 |
 |
 |
 |
 |
 |

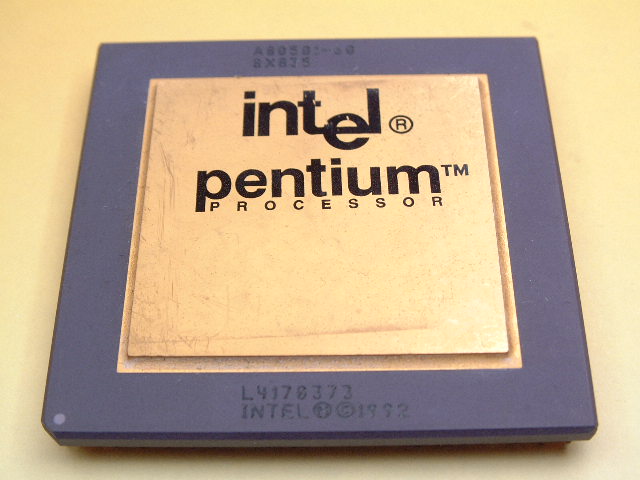

| (FDIV bug) SX835 |

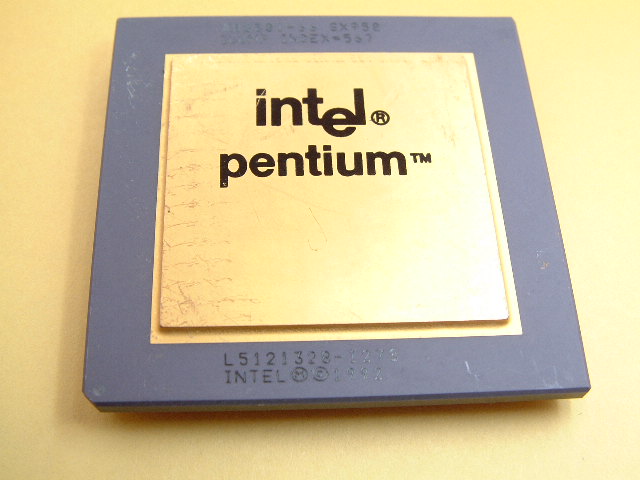

SX948 |

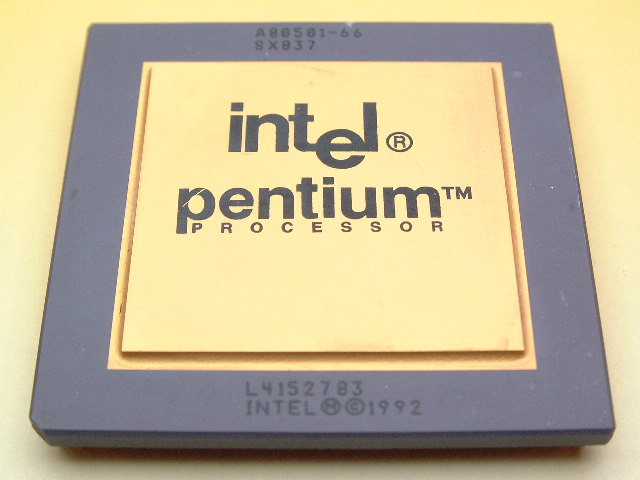

(FDIV bug) SX837 |
SX950 |
SX961 |

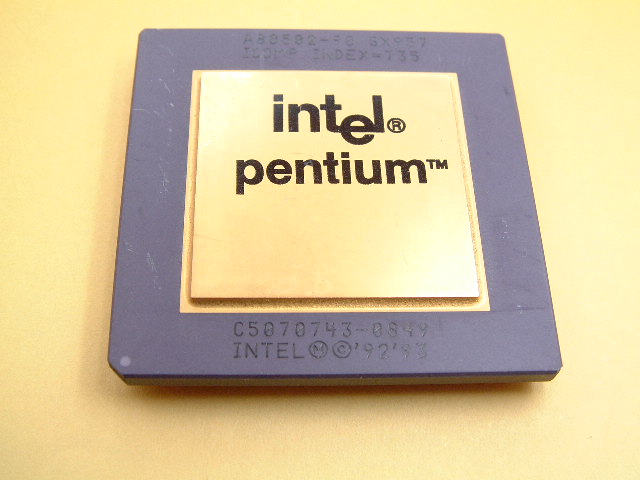

SX957 |
| A80502-100 | |||||
 |
|||||
| SX962 |
|||||

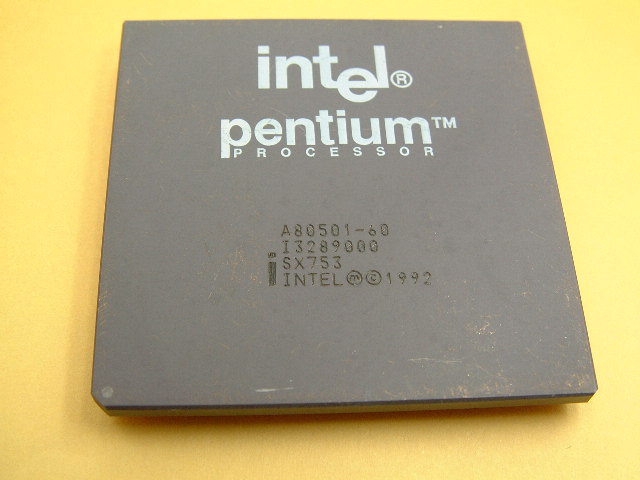

| A80501-60 | A80501-66 | A8050266-133 | A8050275 | BP80502-75 | A80502-90 |
 |
 |
 |
 |
 |
 |
| (FDIV bug) SX753 |

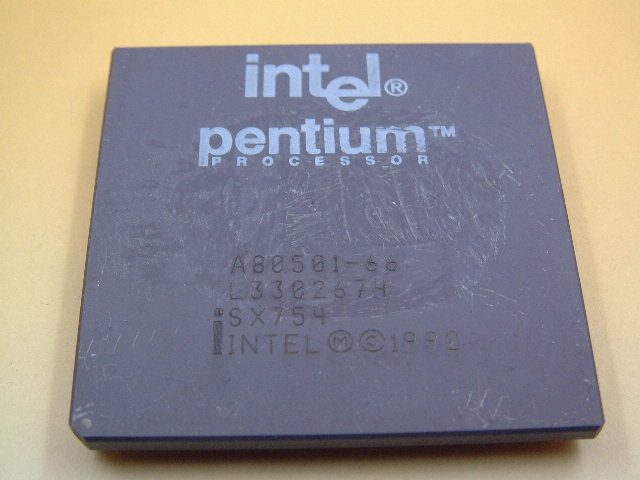

(FDIV bug) SX754 |
(Engineering Sample) Q0772 |

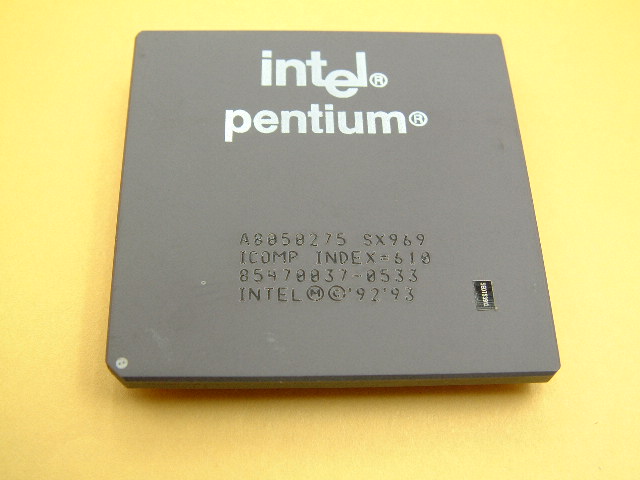

SX969 |
(Boxed without

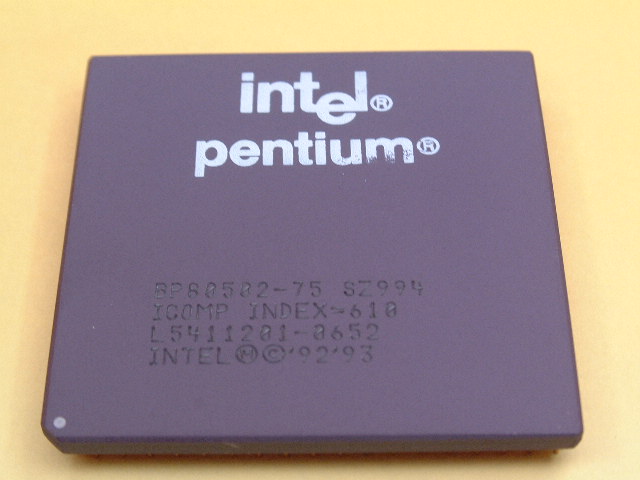

fan) SZ994 |

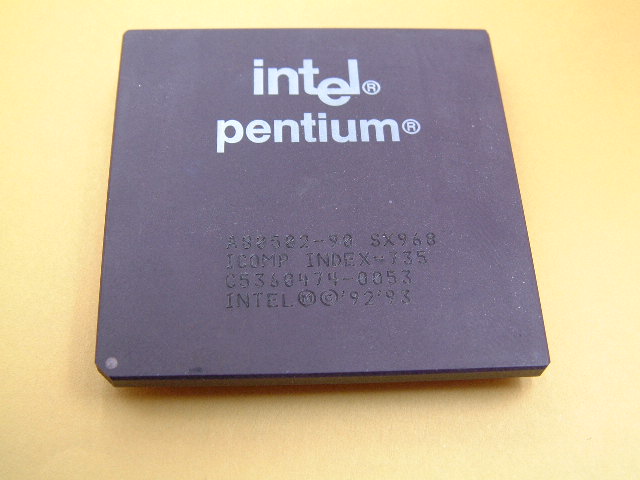

SX968 |

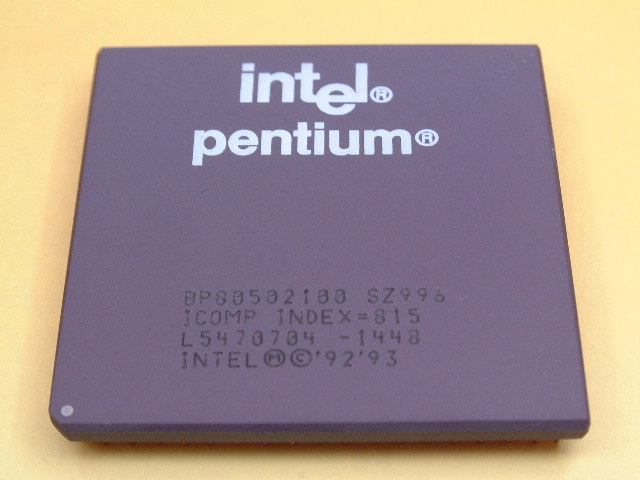

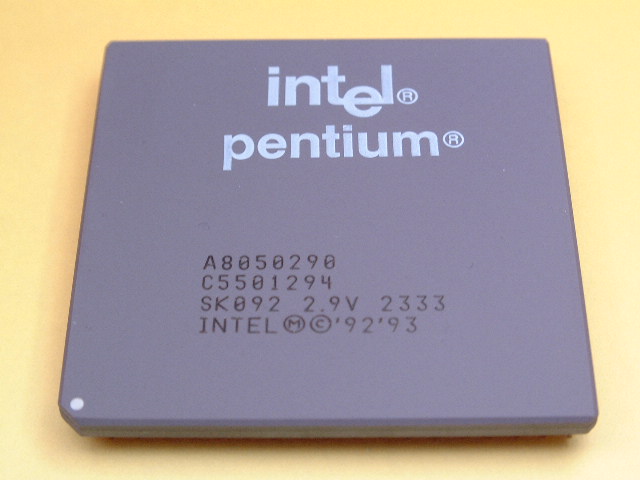

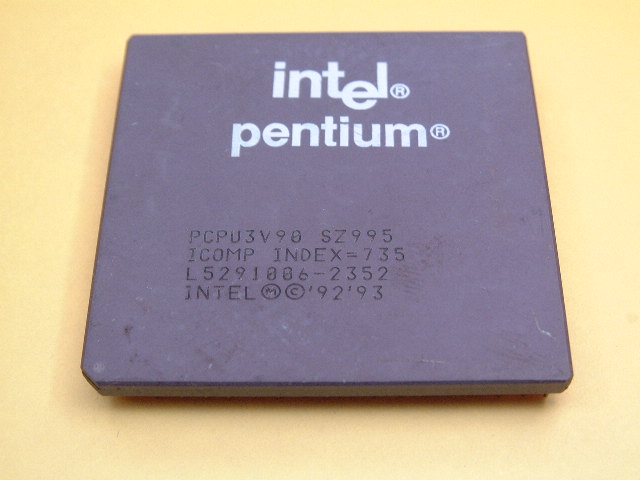

| A8050290 | PCPU3V90 | A80502100 | A80502100 | BP80502100 | PCPU3V100 |
 |
 |
 |
 |
 |
 |
| SK092 2,9V |
SZ995 |

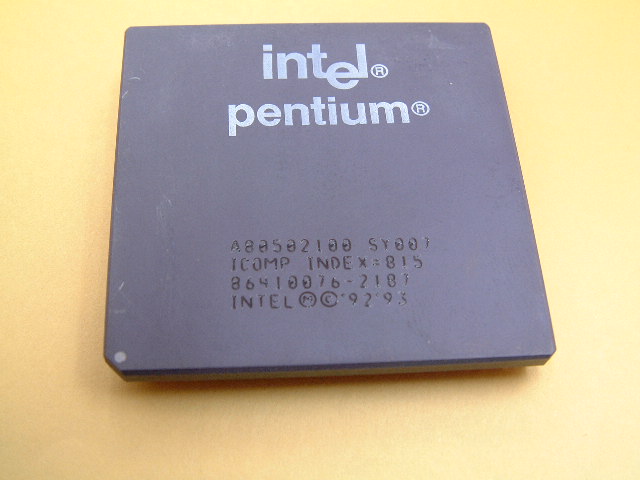

SY007 |
SK124 2.9V |
(Boxed without
fan) SZ996 |

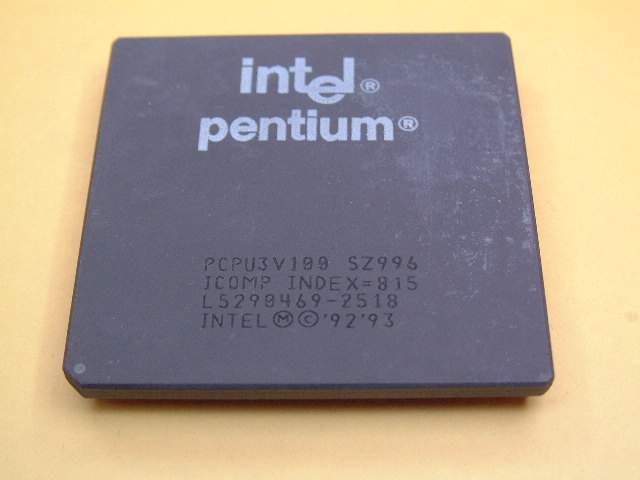

SZ996 |

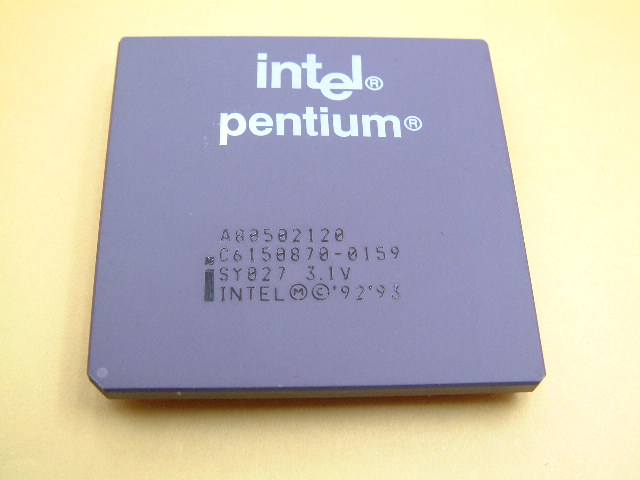

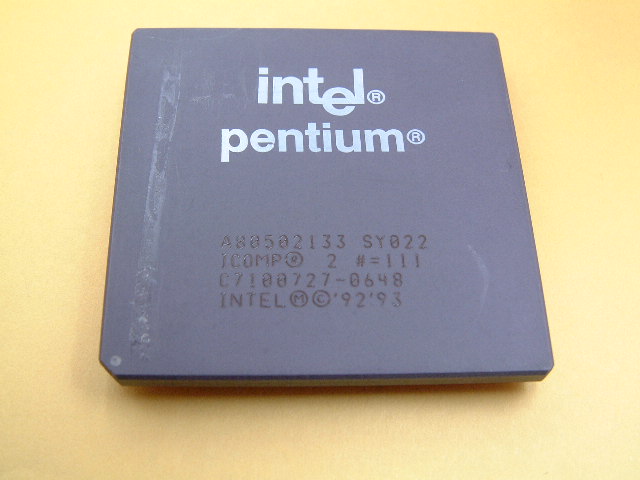

| A80502120 | A80502120 | A80502133 | A80502133 | A80502150 | A80502166 |
 |
 |
 |
 |
 |
 |

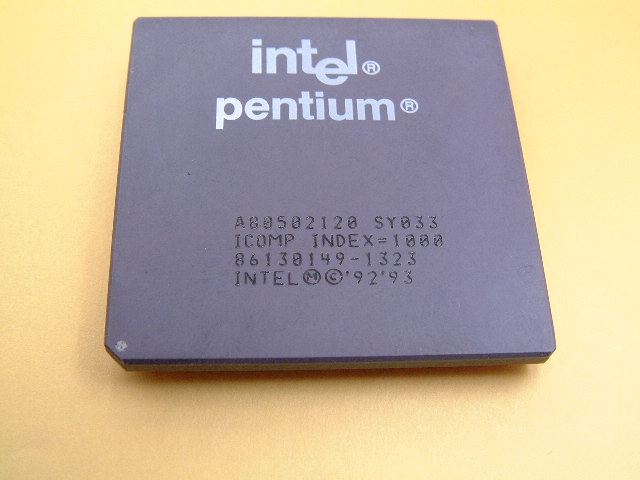

| SY033 |
SY027 3.1V |
SY022 |
SY028 3.1V |

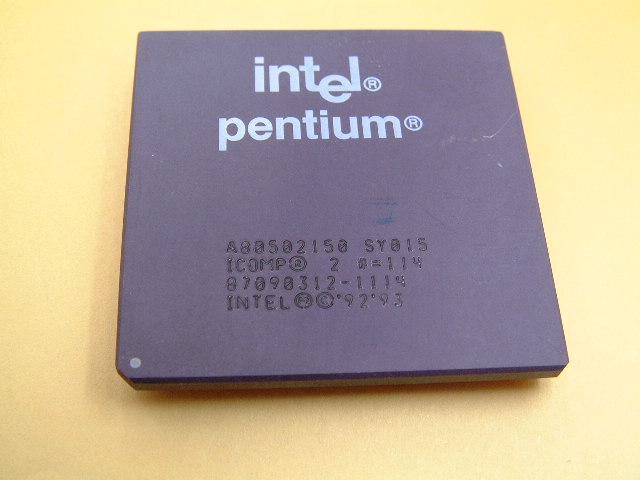

SY015 |
SY017 |

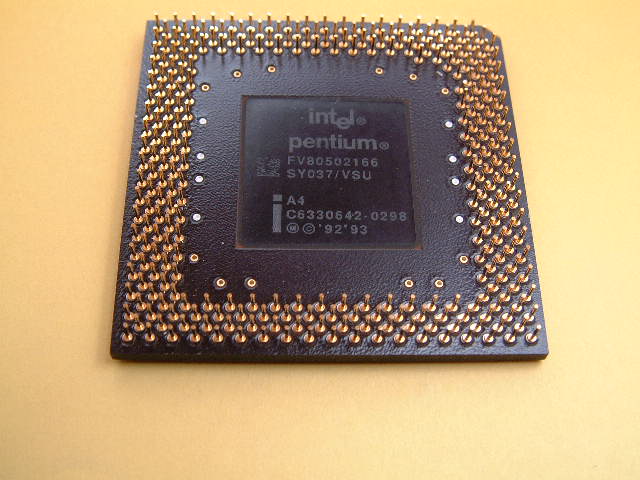

| FV80502166 | FV80502200 | ||||
 |
 |
||||

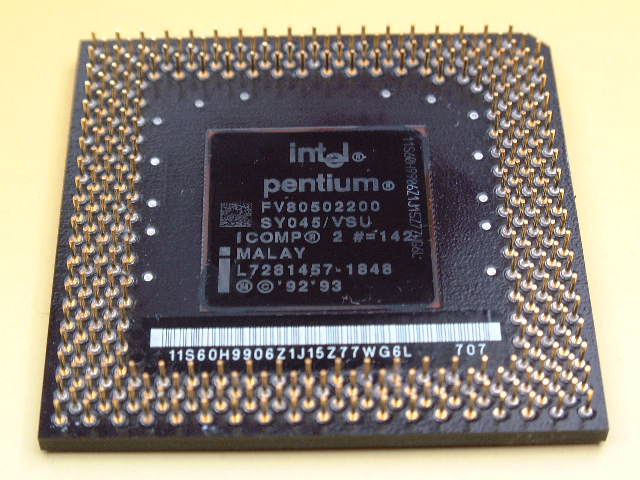

| SY037 | MALAY SY045 |
||||

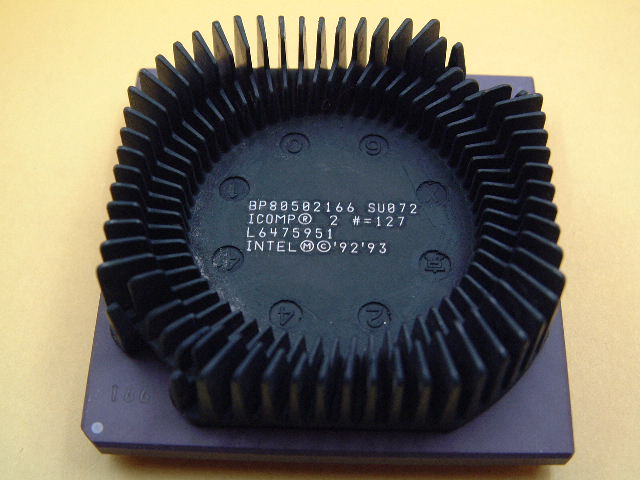

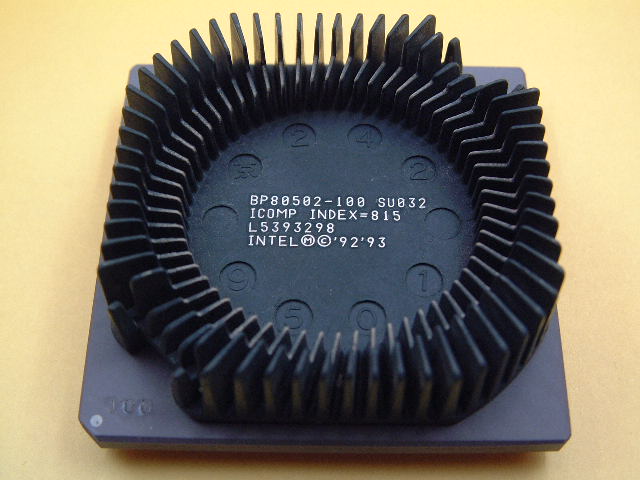

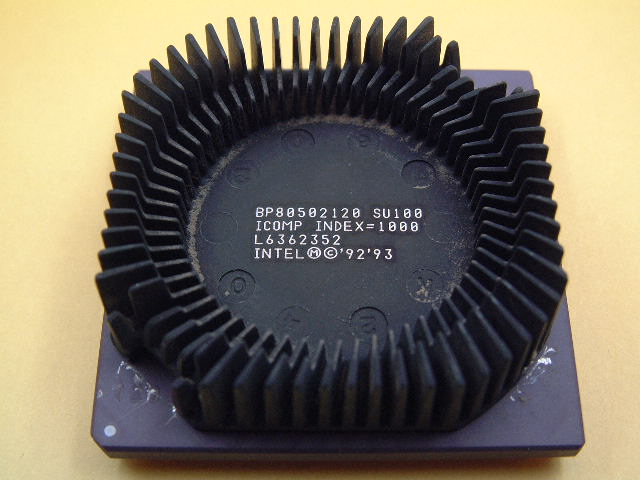

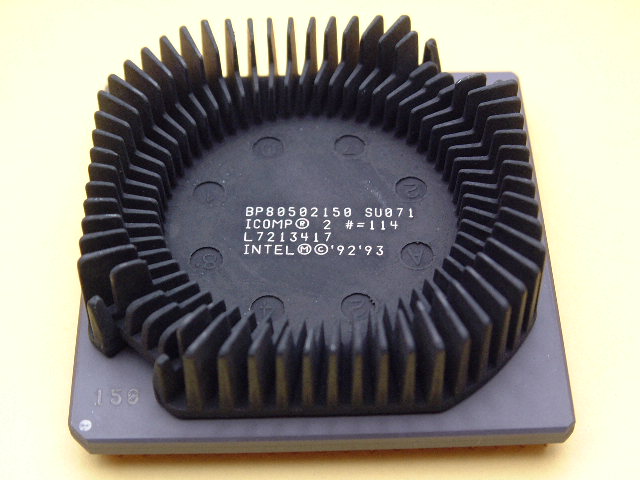

| BP80502-100 | BP80502120 | BP80502133 | BP80502150 | BP80502166 | |
 |
 |
 |
 |
 |
|
| SU032 |
SU100 |

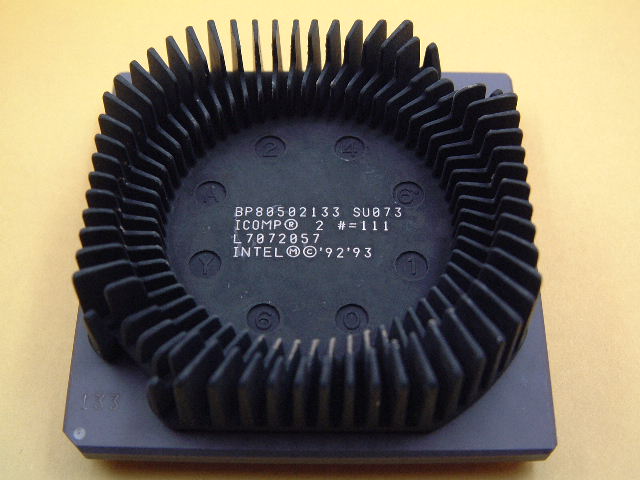

SU073 |
SU071 |
SU072 |
|
Intel Pentium MMX |
|||||

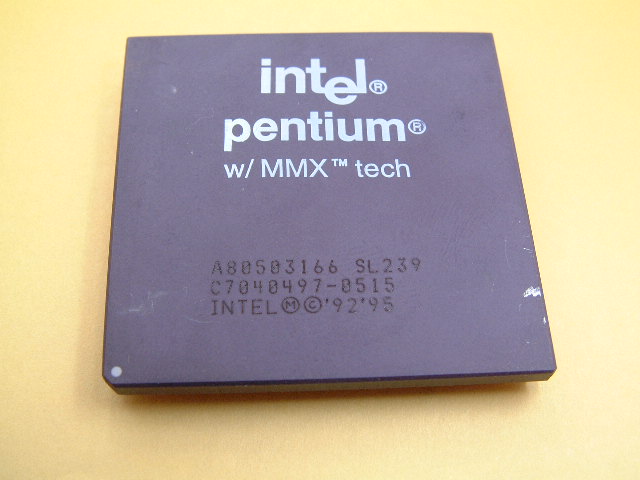

| A80503166 | A80503200 | ||||
 |
 |
||||
| SL239 MMX |
SL2RY MMX |
||||

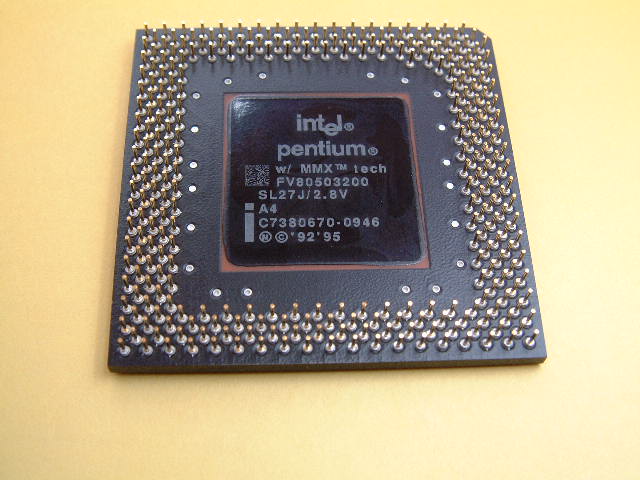

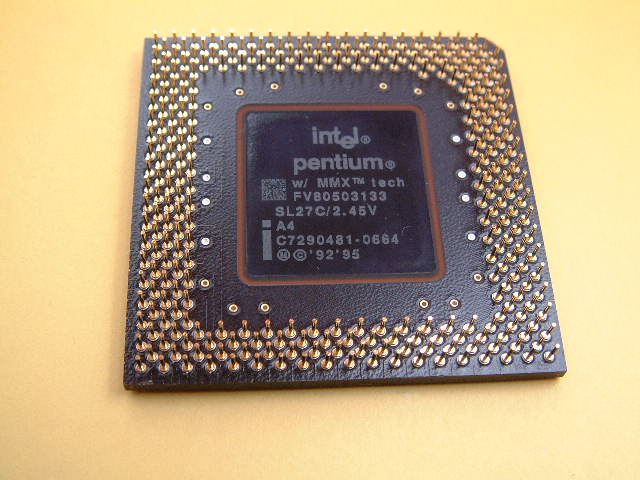

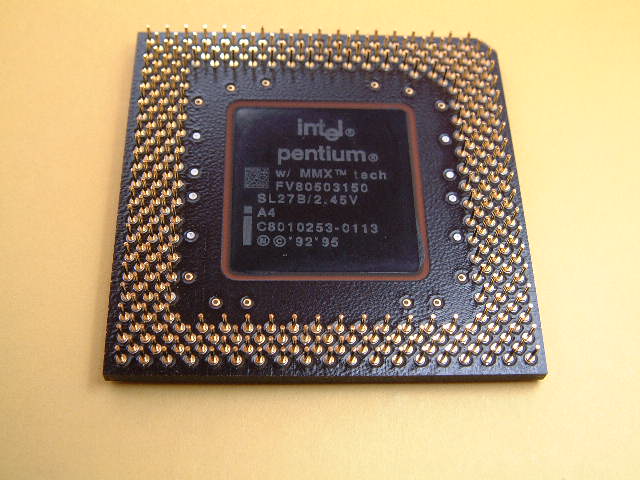

| FV80503133 | FV80503150 | FV80503166 | FV80503200 | FV80503233 | FV80503266 |
 |
 |
 |
 |
 |
 |
| SL27C MMX |
SL27B MMX |
SY059 MMX |
SL27J MMX |
SL27S MMX |

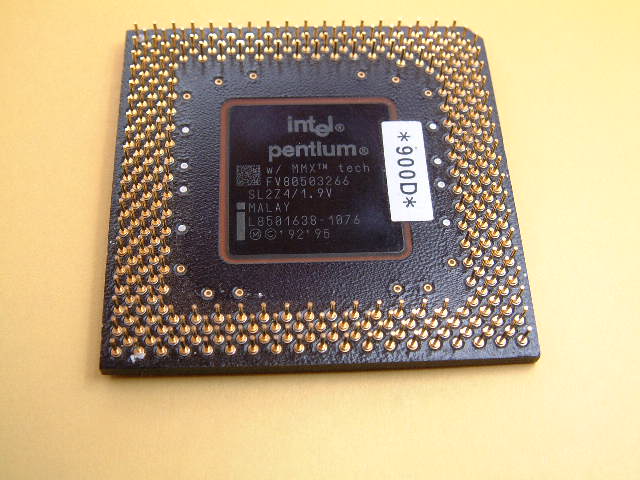

SL274 MMX |
| TT200 | |||||
 |
|||||
| SL28P MMX |
|||||

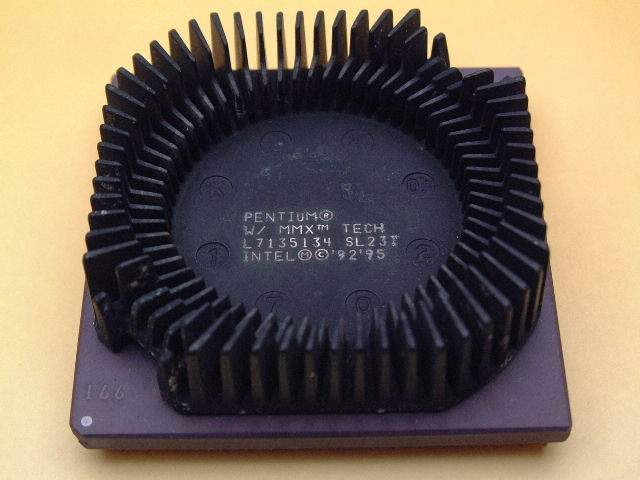

| BP80503166 | BP80503200 | ||||
 |
 |
||||
| SL23T MMX |

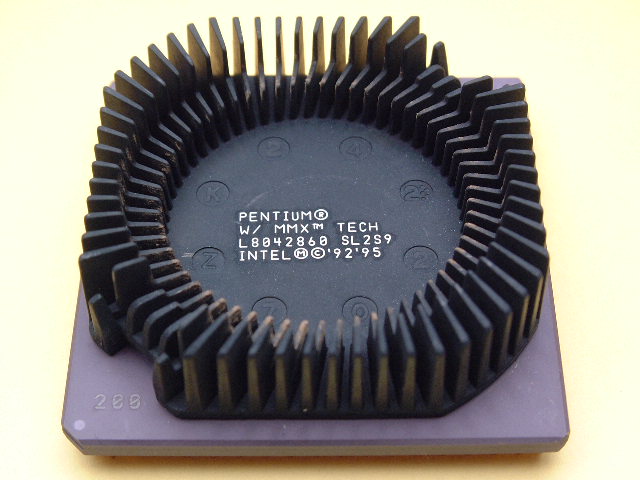

SL2S9 MMX |
||||
| Intel Pentium Overdrive | |||||

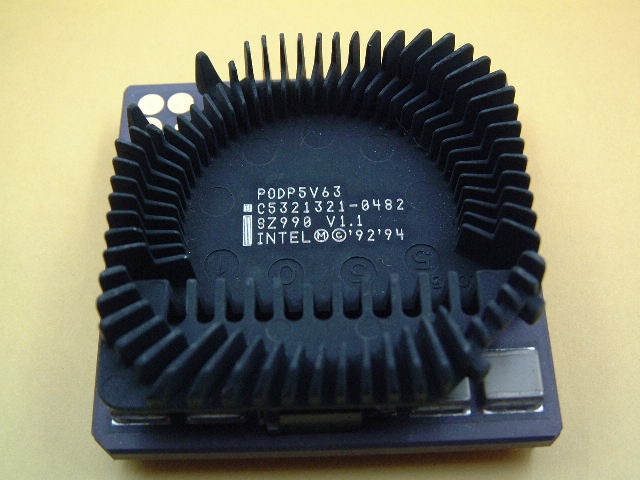

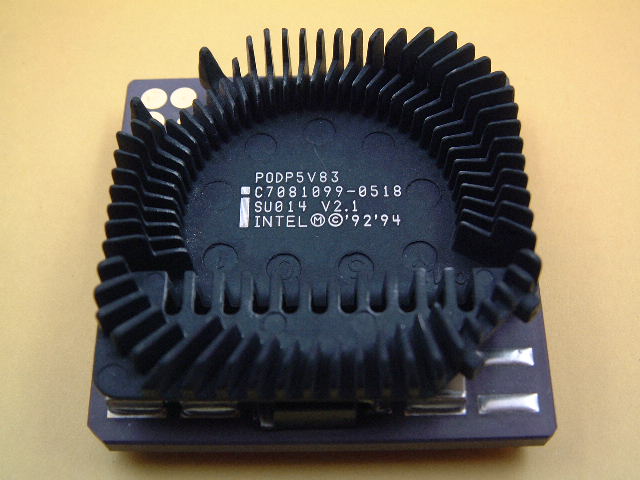

| PODP5V63 | PODP5V83 | ||||
 |
 |
||||
| SZ990 | SU014 | ||||
Pentium Specifications (578K)
