8008

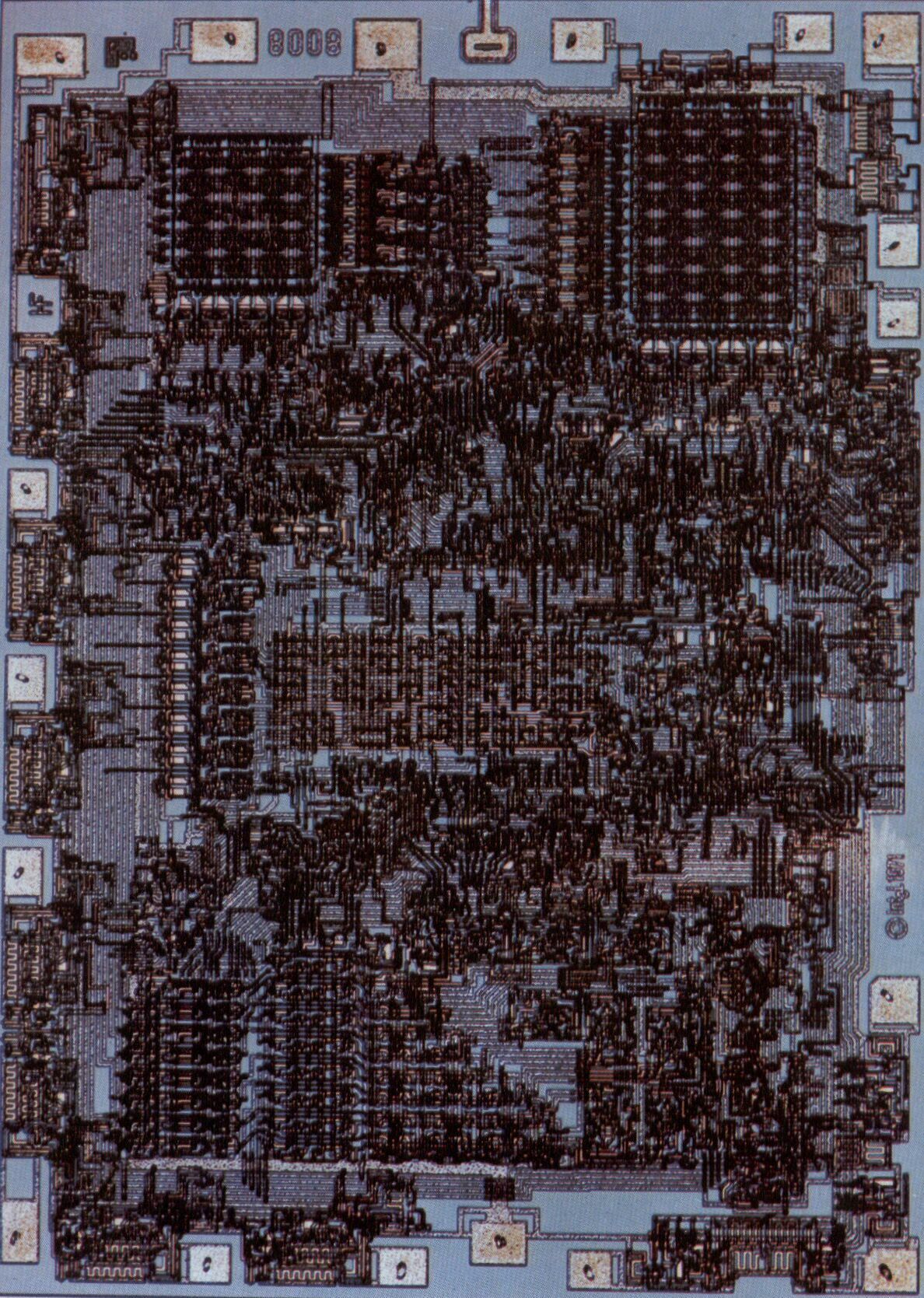

(8008 die core)

Introduction date:   April 1972
Category:   8-bit microprocessor
Frequency:

  8008 0.5MHz
8008-1 0.8MHz
Technology:   P-channel silicon gate MOS technology
Number of transistors:   3,500 (10 microns)
Addressable memory:   16K x 8-bits
Number of instructions:   48 with a 8 level stack, seven 8-bit registers and interrupt abilities
History:







The 8008 was developed in tandem with the 4004 and was intended to be a custom chip for CTC (later
Datapoint) but was rejected because it was too slow

The G8008 was sold to Godbout Electronics in Oakland for use and sale in the hobby market.


Second source:

  Siemens and Microsystems International was second source to Intel 8008.
East German clones was also made of the 8008.




Intel

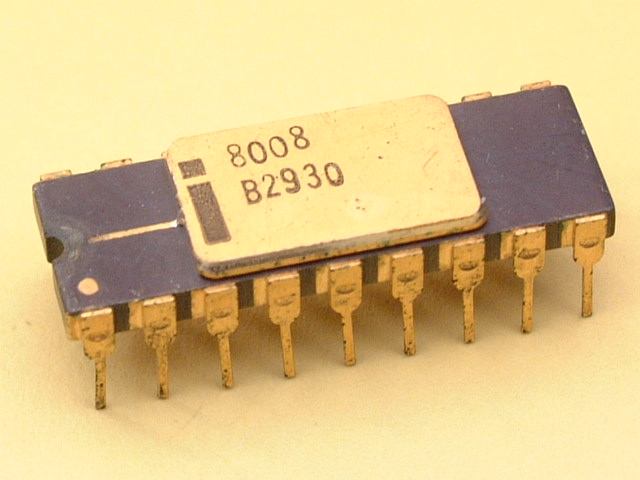

8008

N.D.C

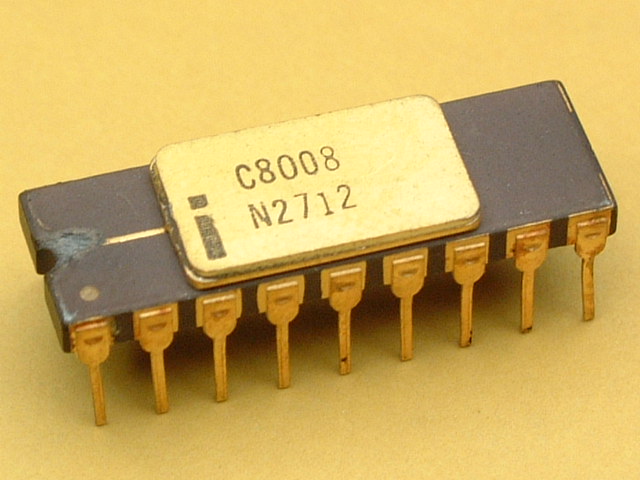

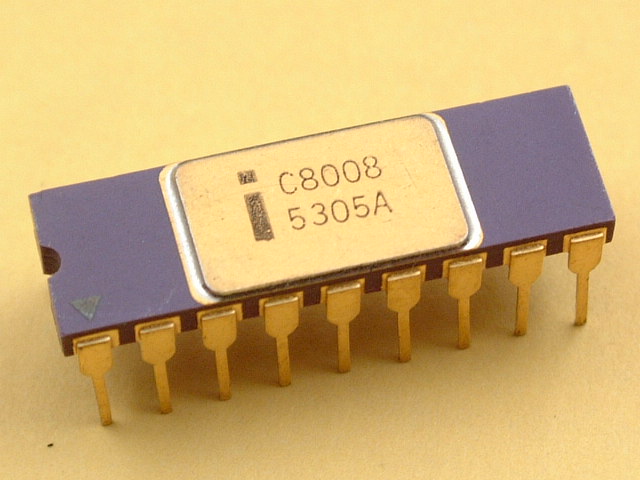

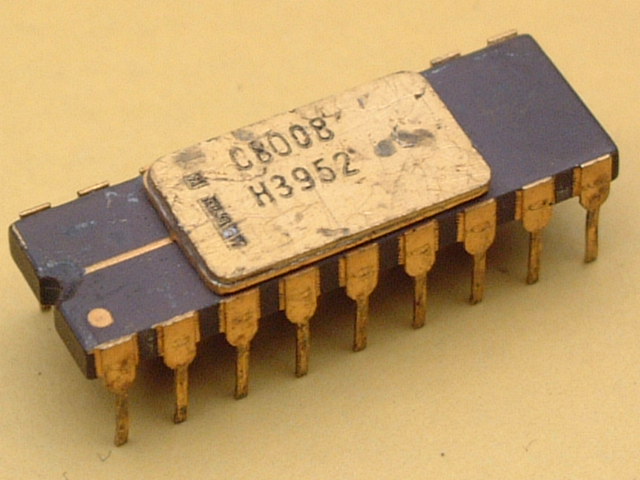

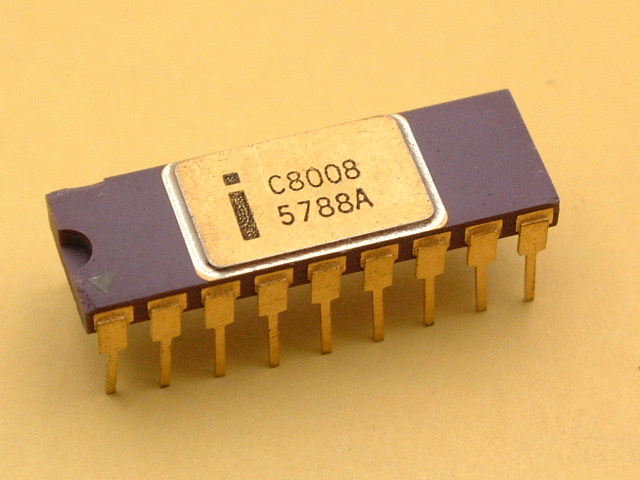

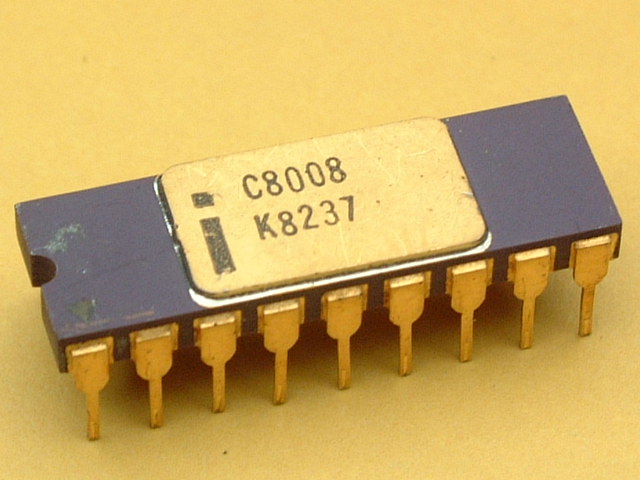

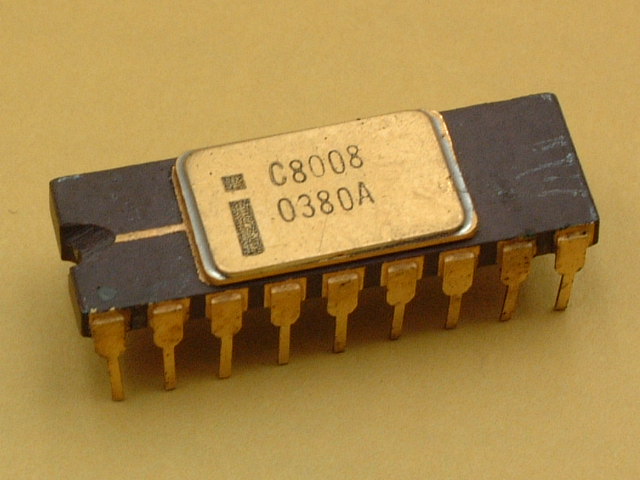

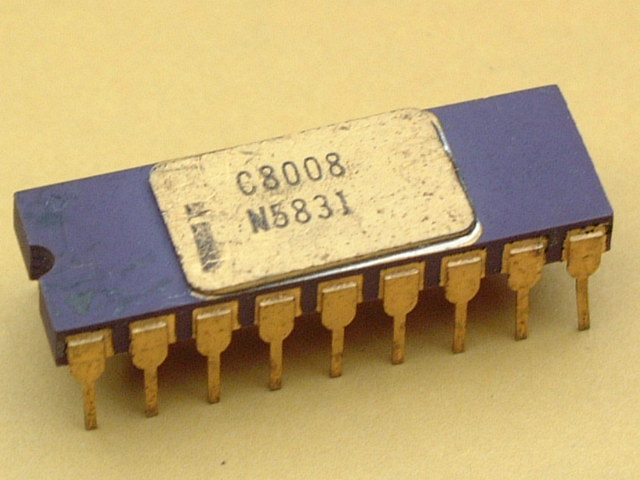

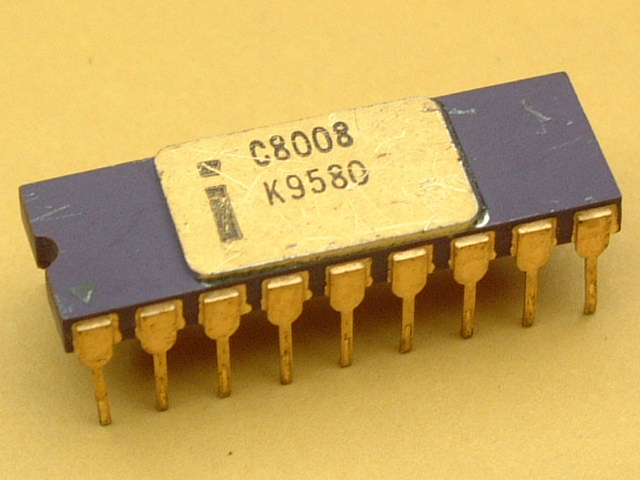

C8008 C8008 C8008 C8008 C8008 C8008
Malaysia
7736
N.D.C Philippines
7611
Malaysia
7503
N.D.C

Malaysia
N.D.C

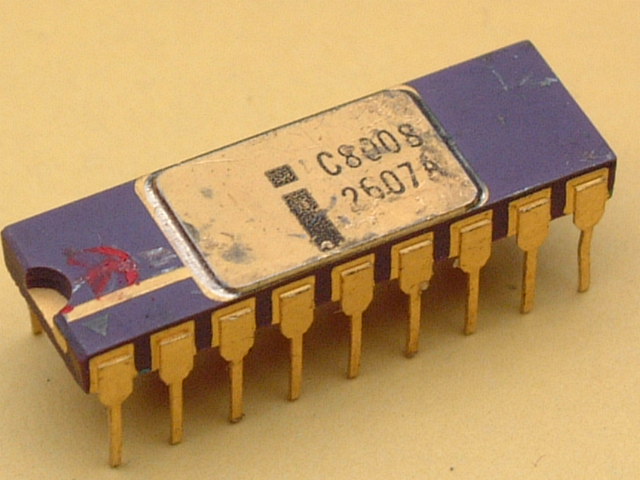

C8008 C8008 C8008

Malaysia
7514
HONG KONG
7728
Malaysia

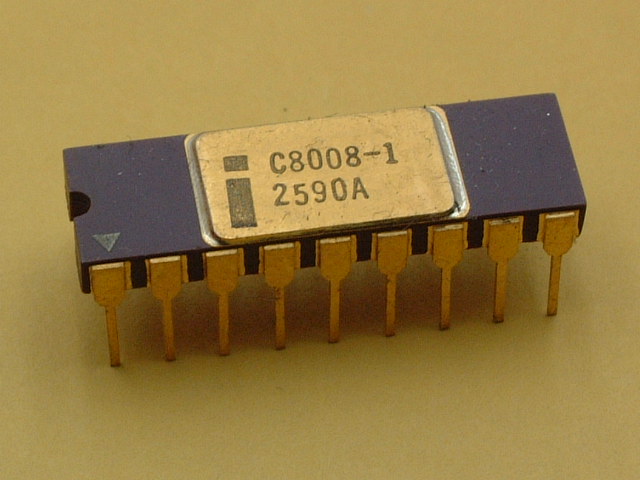

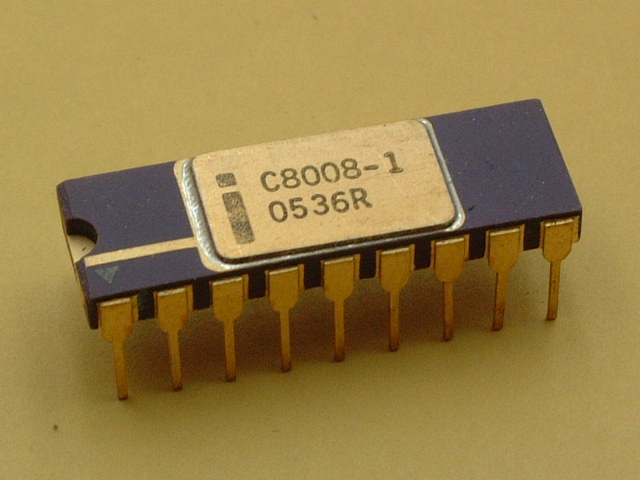

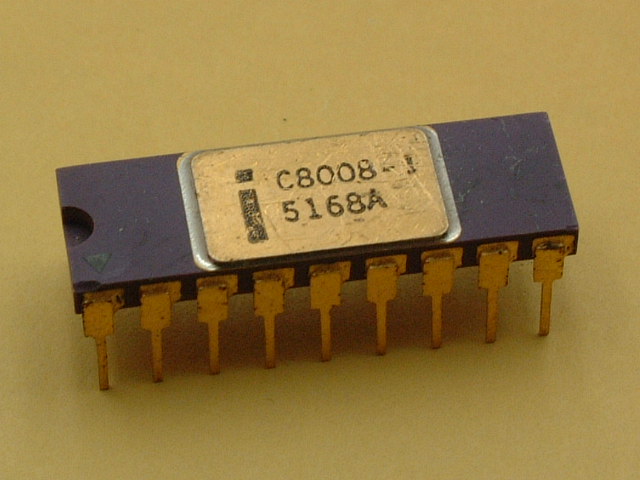

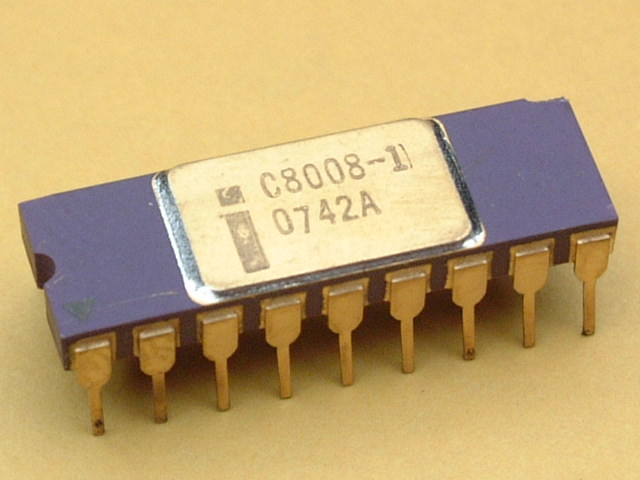

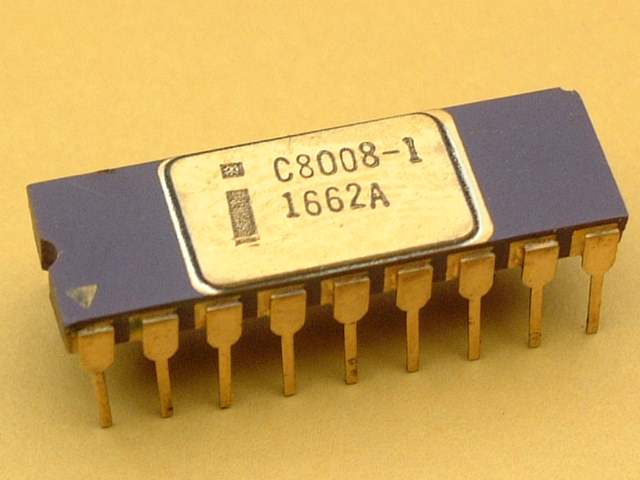

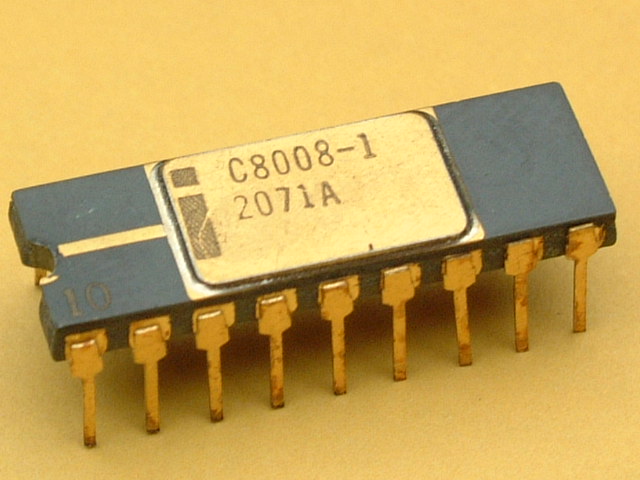

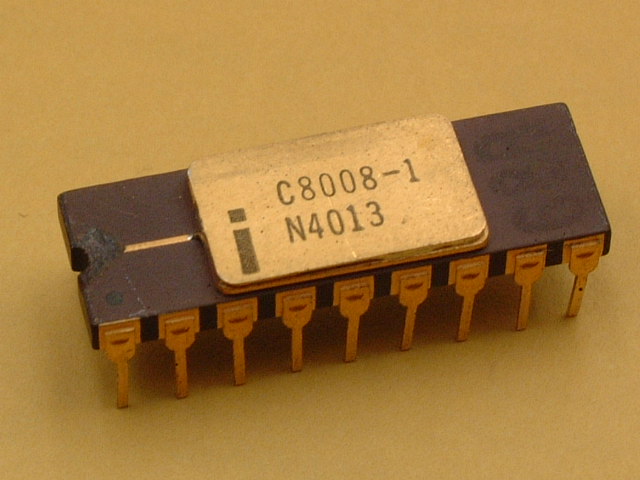

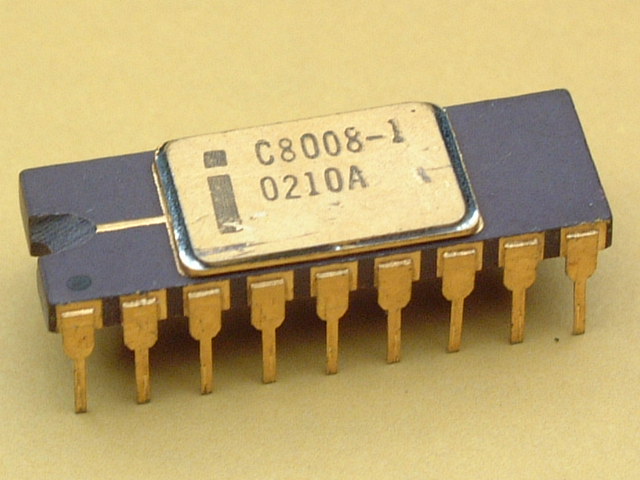

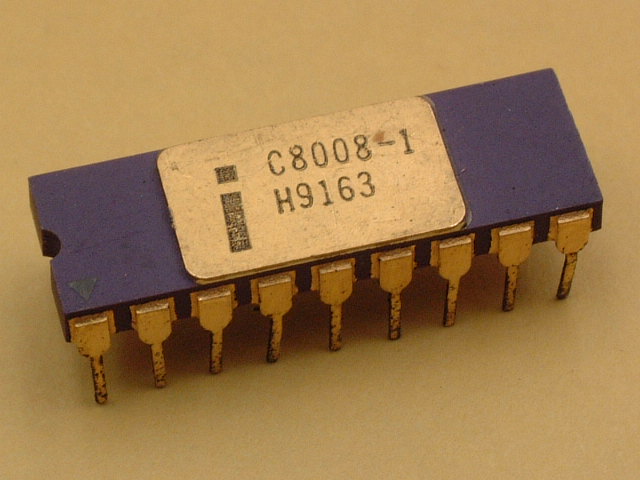

C8008-1 C8008-1 C8008-1 C8008-1 C8008-1 C8008-1
Malaysia
7502
Philippines
7606
MALAYSIA
N.D.C
Malaysia
7633
Philippines
7613
Malaysia
7648

C8008-1 C8008-1 C8008-1 C8008-1

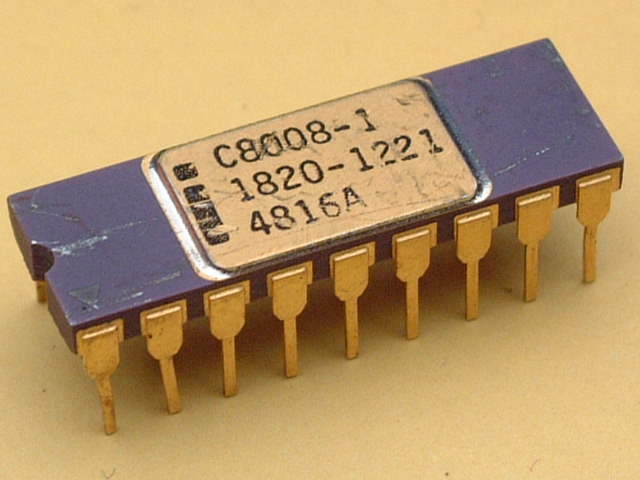

(HP House Marking)
HONG KONG
7728
HONG KONG
7731

Malaysia
7652

Malaysia
7640

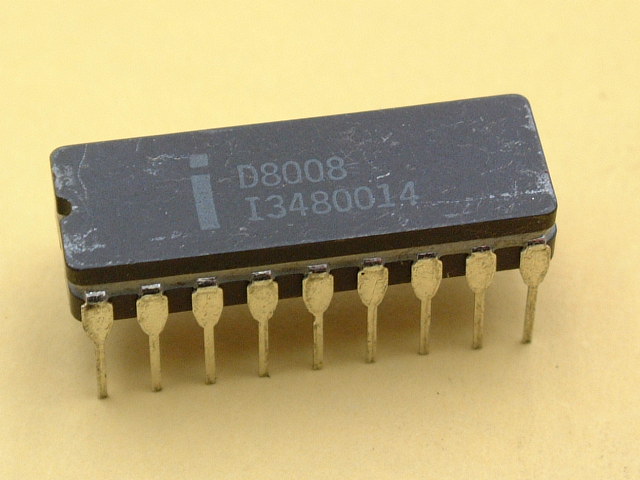

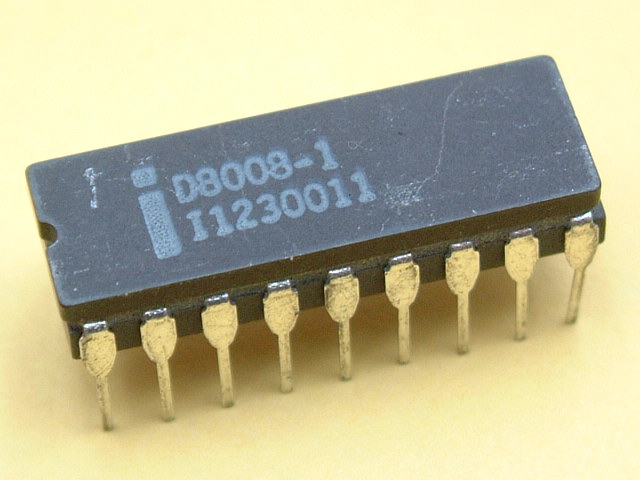

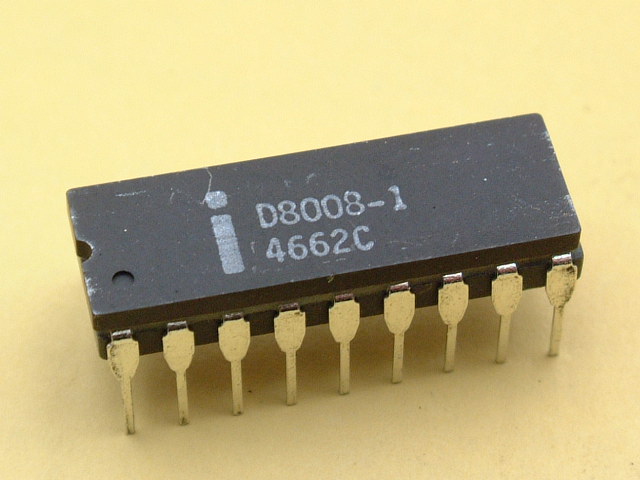

D8008 D8008-1 D8008-1

Barbados
8319
Philippines
7911
Barbados
8121

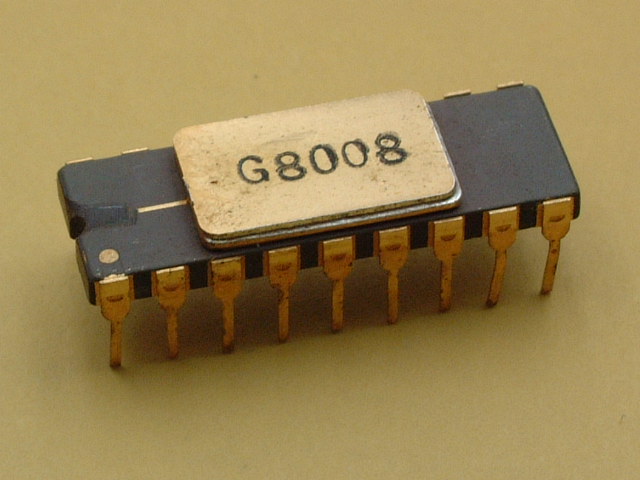

G8008

N.D.C

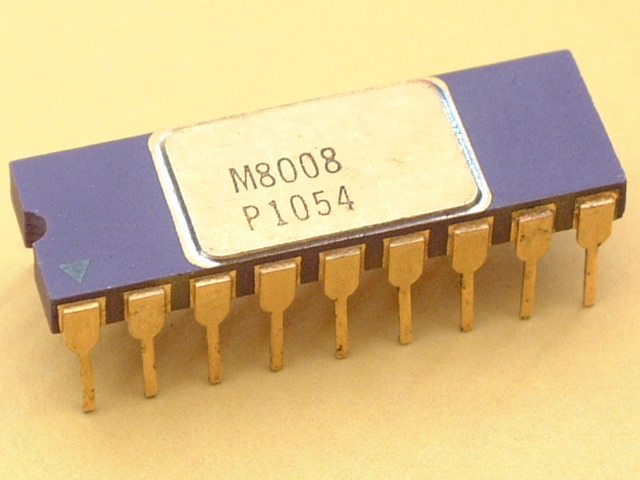

M8008

Malaysia
7530





Microsystems International

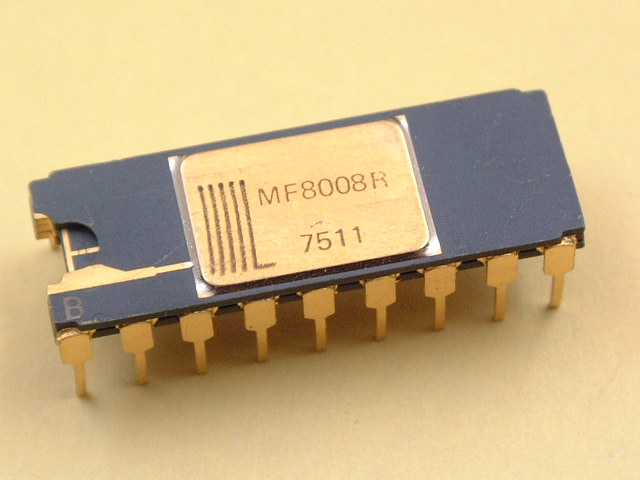

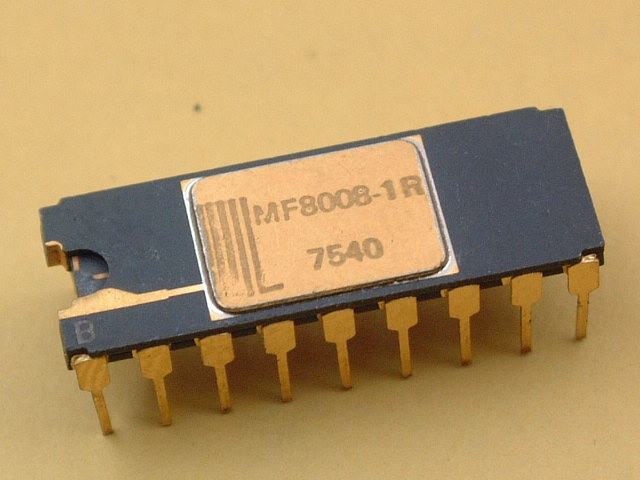

MF8008R MF8008-1R

7511 7540




Siemens

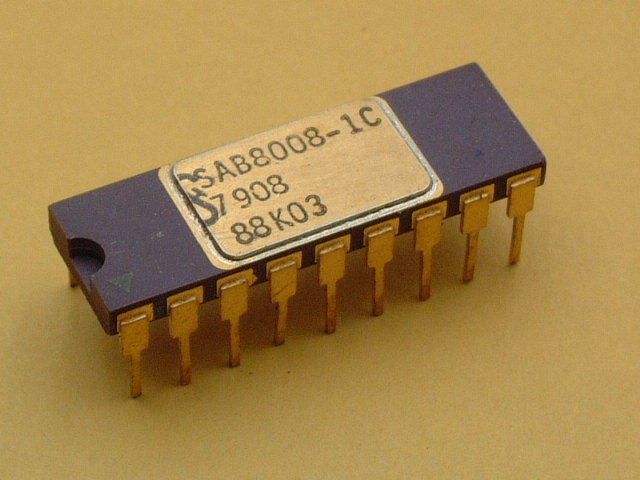

SAB8008-1C

Malaysia
7908

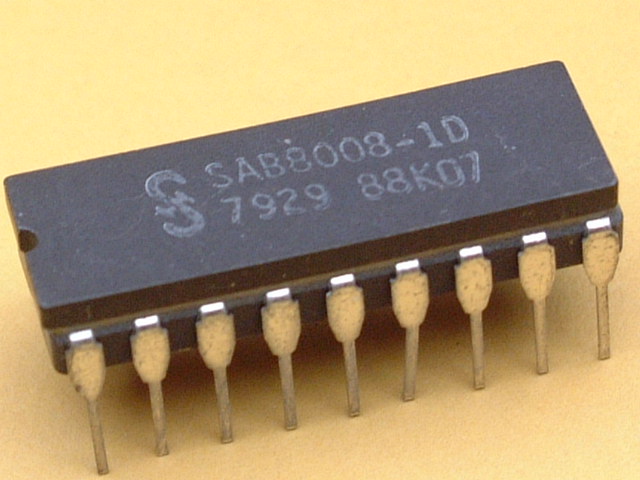

SAB8008-1D

Philippines
7929





FunkWerk Erfurt

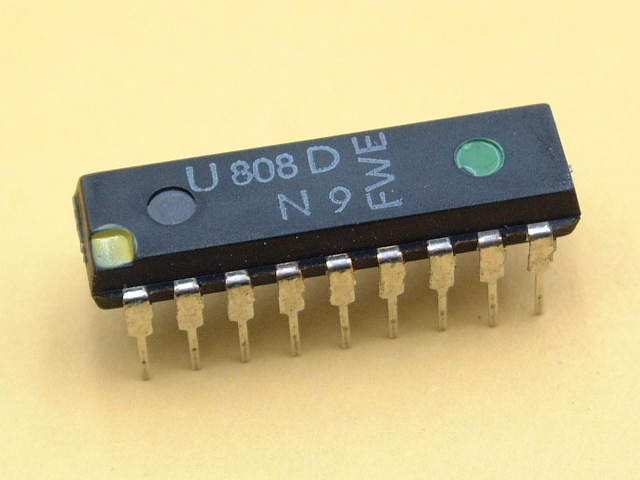

U808D








Pin configuration
