4003

Introduction date:   1971
Type:   10-bit Serial-in/Parallel-out, Serial-out Shift Register.
Memory:
Technology:   P-channel silicon gate MOS technology
Number of transistors:
History:

 		   The 4003 was designed to be used with other MCS-4/40 devices such as the 4004 CPU.


Second source:   National Semiconductors was the only second source.



Intel
C4003 C4003 C4003 C4003 C4003
Highslide JS
Intel C4003 gray traces ceramic package.
Highslide JS

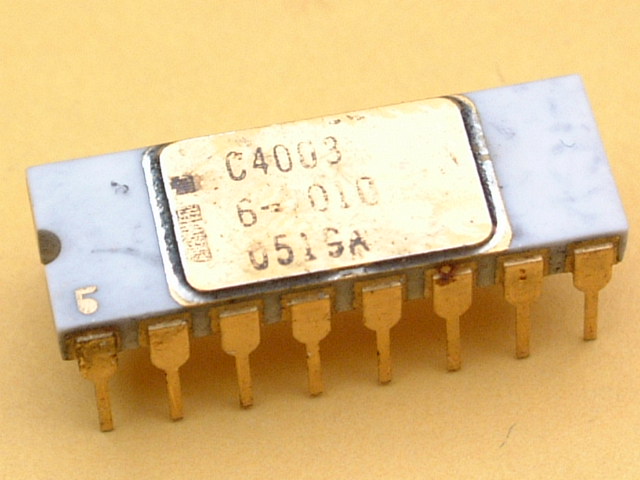

Intel C4003 white ceramic package.
