3002 Support Chips
| Introduction date: | November 1974 | |
| Category: | 2-bit Bit-slice processor | |
| Frequency: | 6MHz | |
| Technology: | Shottky Bipolar LSI circuit | |
| Number of transistors: | ? (6 microns) | |
| Addressable memory: | 64Kbyte | |
| Number of instructions: | 512 microinstructions | |
| History: |
Several 3002's could be linked together to create a computer that could handle
16-bits at a time. |
|
| Second source: |
Signetics was the only second source to Intel 3002. |

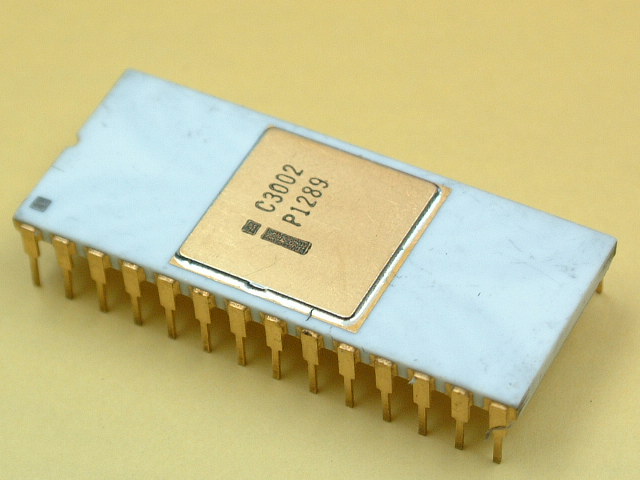

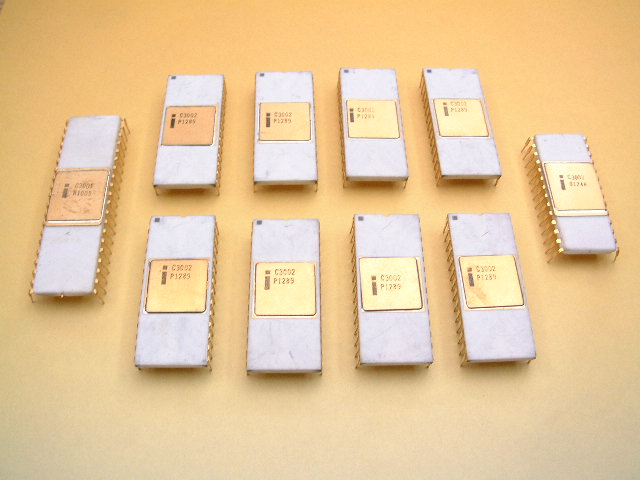

| Intel | |||||

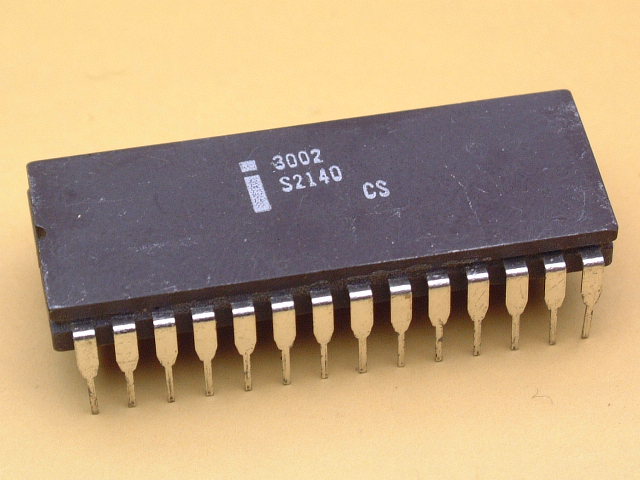

| C3002 | C3002 | ||||
 |
 |
||||
| Engineering Sample N.D.C |
Malaysia 7531 |
||||

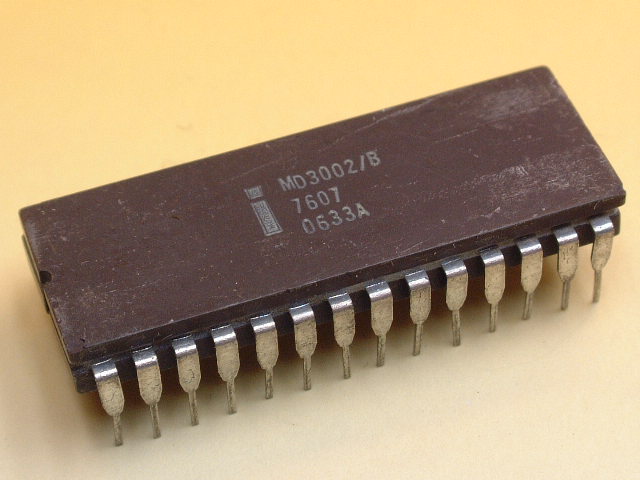

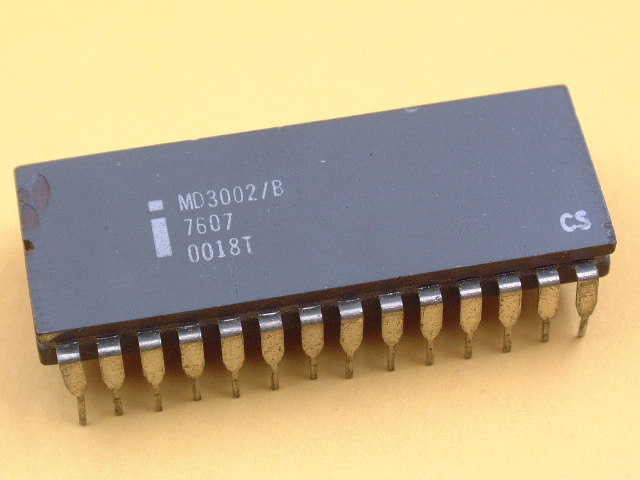

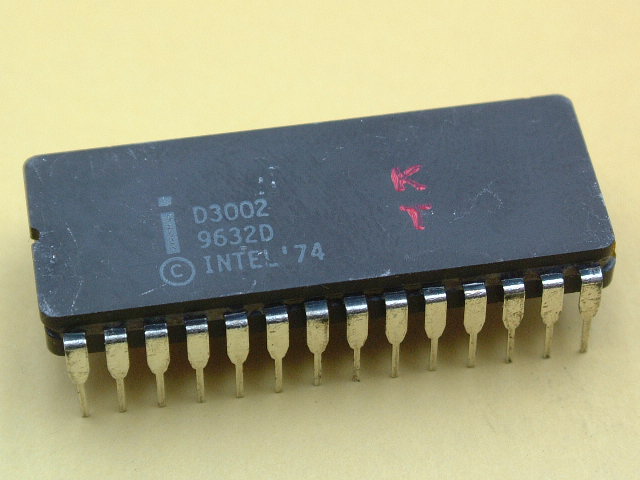

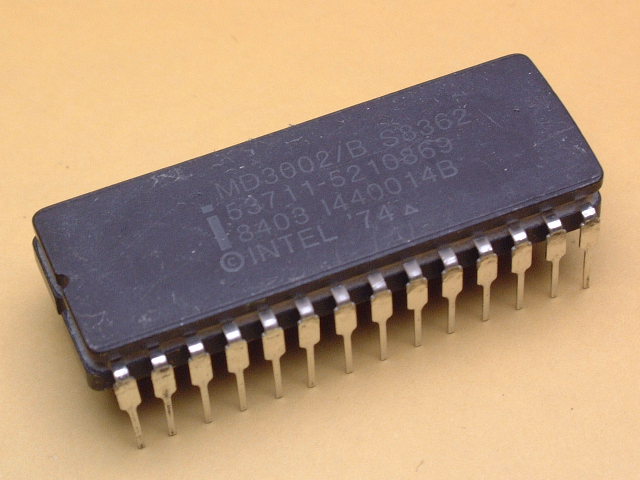

| 3002 | D3002 | MD3002/B | MD3002/B | MD3002/B | |
 |
 |
 |
 |
 |
|
| (Custom Sample) Malaysia 7604 |
Barbados 8030 |
(Custom Sample) Malaysia 7606 |
PHILIPPINES 8403 |
Malaysia 7607 |

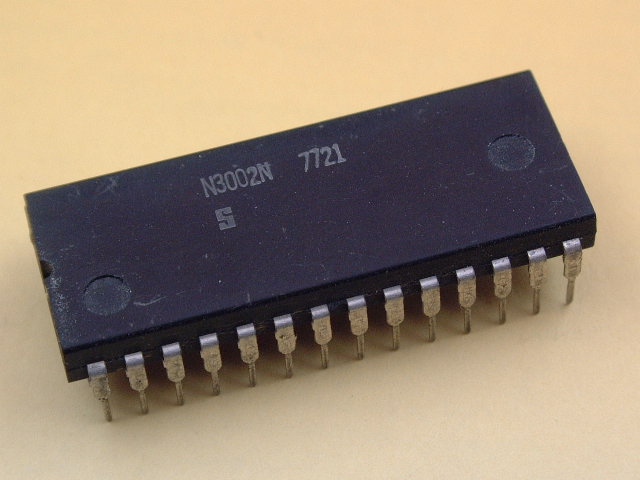

| Signetics | |||||

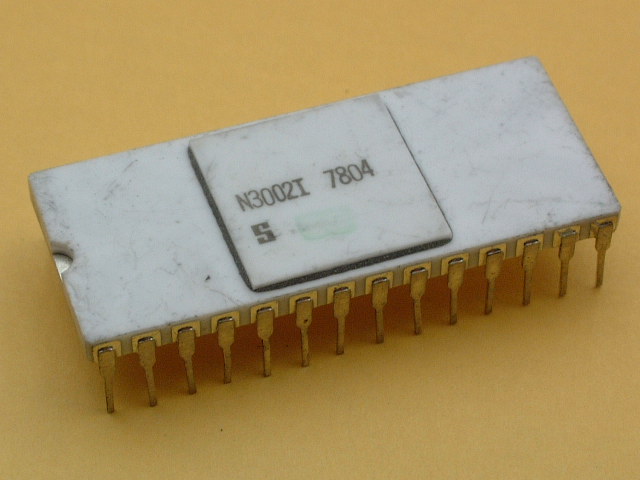

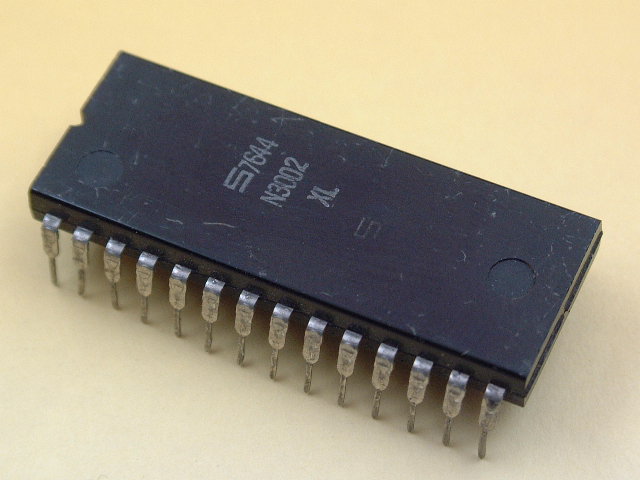

| N3002I | N3002 | N3002N | |||
 |
 |
 |
|||
| 7804 | 7644 | 7721 |

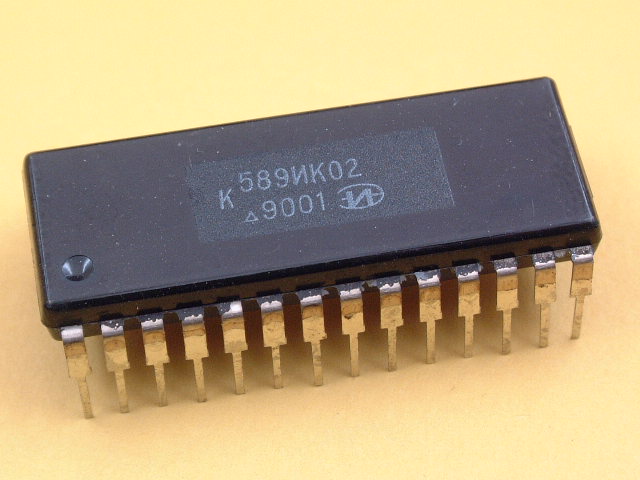

| USSR | |||||
| 589NK02 | |||||
 |
|||||
| 9001 |
| Tesla | |||||

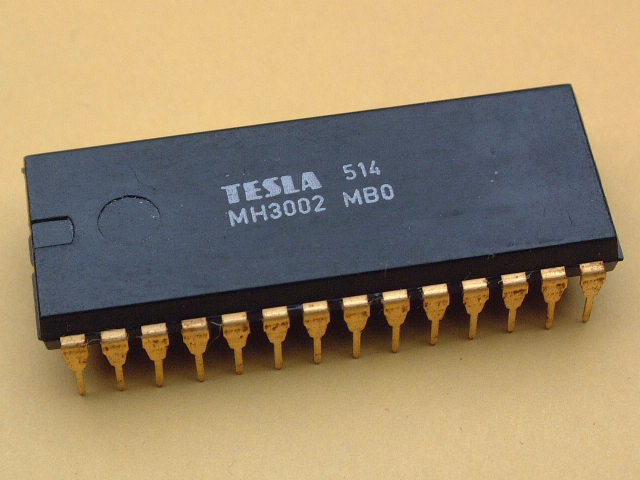

| MH3002 | |||||
 |
|||||
| 514 |

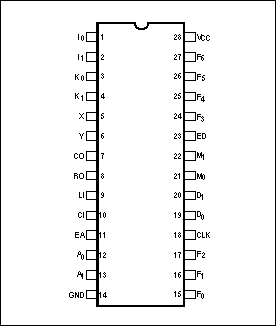

3002 pin configuration
(Basic Configuration For a 16-bit Bipolar Computer)
3002 Support Chips
Members of the Intel Bipolar Microcomputer Set:
| 3001 | Microprogram Control Unit |
Intel3001.pdf (478K) |
| 3002 | Central Processing Element |
Intel3002.pdf (472K) |
| 3003 | Look-Ahead Carry Generator | |
| 3212 | Multi-Mode Latch Buffer | |
| 3214 | Priority Interrupt Control Unit | |
| 3216 | Parallel Bi-directional Bus Driver | |
| 3226 | Inverting Bi-Directional Bus Driver | |
| 3301 | Shottky Bipolar ROM (256 x 4) | |
| 3304 | Shottky Bipolar ROM (256 x 8) | |
| 3601 | Shottky Bipolar PROM (256 x 4) | |
| 3604 | Shottky Bipolar PROM (256 x 8) |
| 3301 Shottky Bipolar ROM (256 x 4) | |||||
| 3301A | C3301A | ||||
 |
 |
||||
| MEXICO N.D.C |
MEXICO N.D.C |
||||
