1701

Introduction date:   September 1971
Type:   Static Erasable Read only Memory.
Memory:   256 x 8-bit
Technology:   PMOS
Number of transistors:
History:



  The 1701 was the first PROM that coul'd be reprogrammed. By using an ultra violet light it was possible to erase the data stored.




Second source:   Microsystems International was the only second source to 1701





Intel
C1701
Highslide JS
Intel C1701
Highslide JS

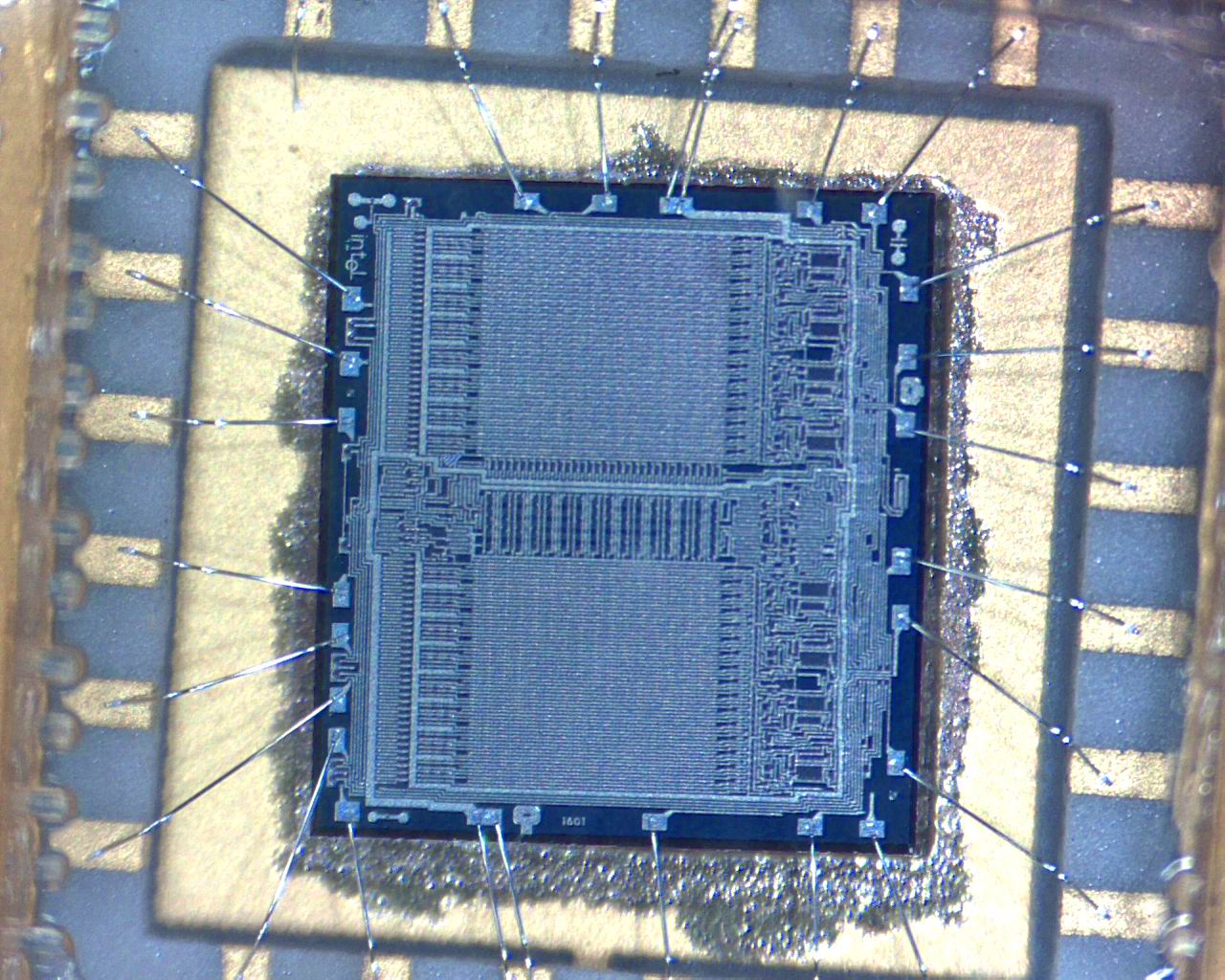

Intel C1701 die photo.

MEXICO
N.D.C
C1701 die photo






Microsystems International
MF1701R
Highslide JS

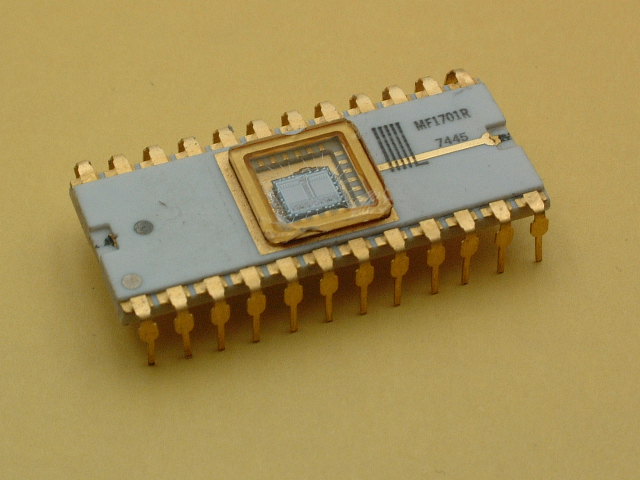

Microsystems International MF1701R

7446
